Flow Reactors Overview

Vapourtec supplies a comprehensive range of precision flow reactors covering a broad range of flow chemistry applications. The flow reactors are flexible and easy to use and can be used on both the R-Series and E-Series flow chemistry systems.

Flow reactors product range

The reactors currently available range from small bore tube reactors through to large bore tube reactors, packed bed column reactors, microreactors, and mixers. All our reactors are interchangeable on our flow systems and the full product range can be viewed below. For specialised products not listed please contact us using the methods at the bottom of this page.

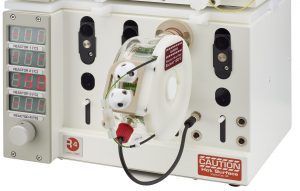

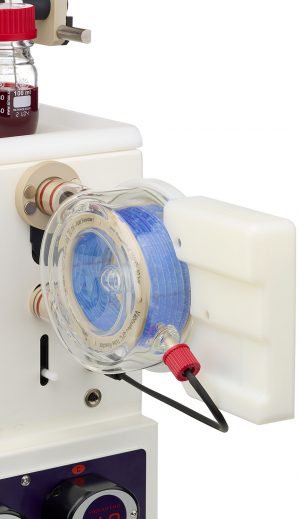

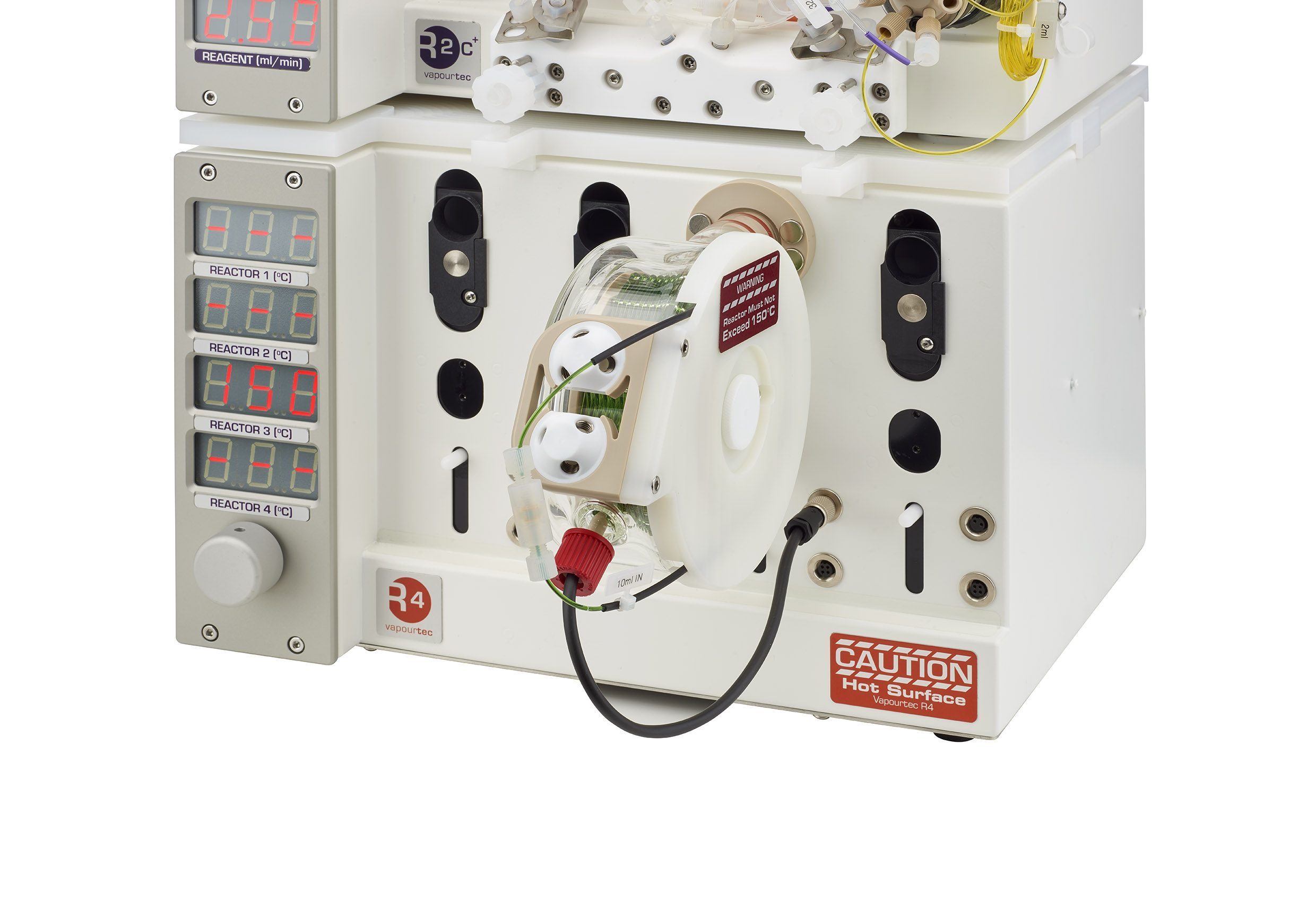

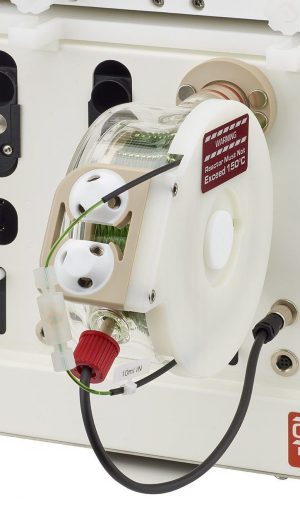

Standard coiled tube reactor

 Find out more
  • Excellent visibility of reactants
  • Ambient to 150°C
  • PFA, stainless steel or Hastelloy
  • Strong acid resistance (with PFA)

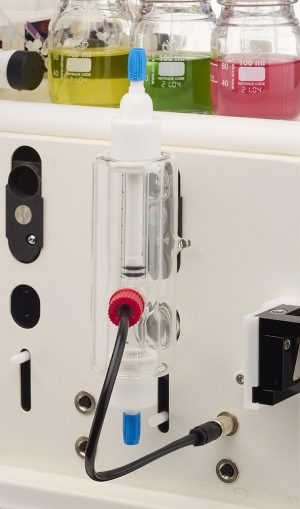

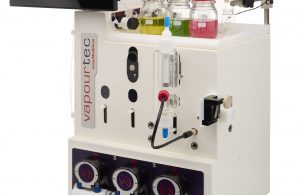

Column reactor

 Find out more
  • For heterogeneous reactions
  • Excellent visibility of reactants
  • Ambient to 150°C
  • Sizes from 3ml to 20ml
  • Glass and PTFE reactors
  • Strong acid resistance
  • Rapid temperature control

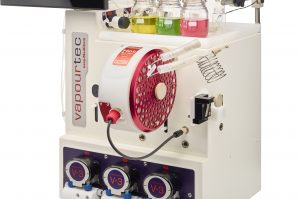

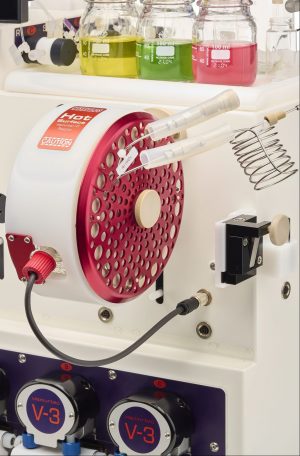

High temperature tube reactor

 Find out more
  • Double insulated for safety
  • Ambient to 250°C
  • Stainless steel or Hastelloy
  • Acid resistance (with Hastelloy)
  • Options for 50 bar or 200 bar

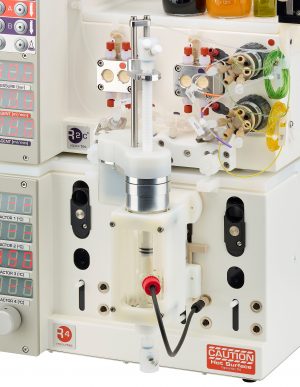

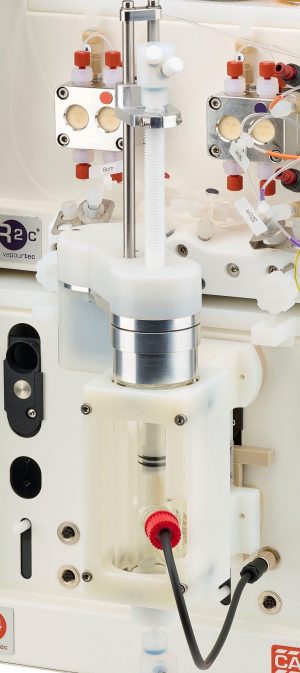

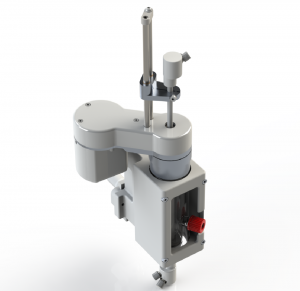

Variable bed flow reactor (VBFR)

 Find out more Vapourtec VBFR
  • Resistant to strong acids and bases
  • Fully automatic volume change
  • Can be heated and cooled, 150 °C to -20 °C
  • Working volume range from 0.3 ml to 20 ml
  • Volume change can be logged and recorded by Vapourtec R-Series software

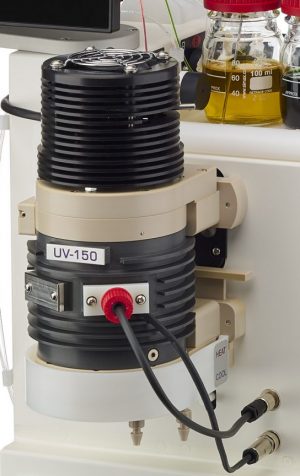

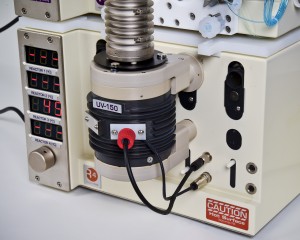

Photochemical reactor

 Find out more
  • Either UV lamp or LED light sources
  • Fully interlocked for saftey
  • -5°C to 80°C
  • Up to 10ml reactors
  • Wavelength filters available
  • Strong acid resistance

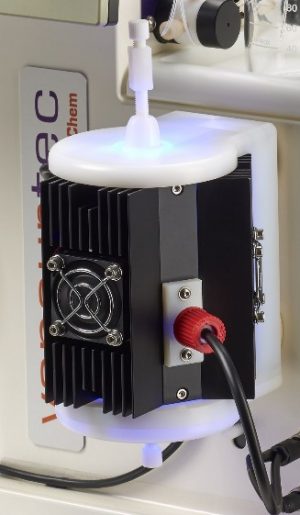

Illuminating immobilised photo catalysts

 Find out more
  • For illumination of immobilised photo catalysts
  • Integrates with both E-Series and R-Series systems
  • Catalyst is immobilised in a Pyrex column
  • Volume of packed bed is adjustable 0.3 ml to 3 ml
  • High power LEDs illuminate column

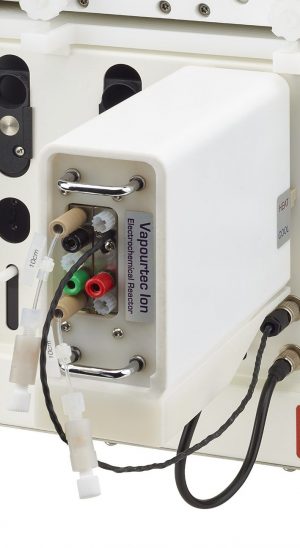

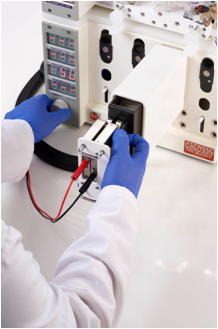

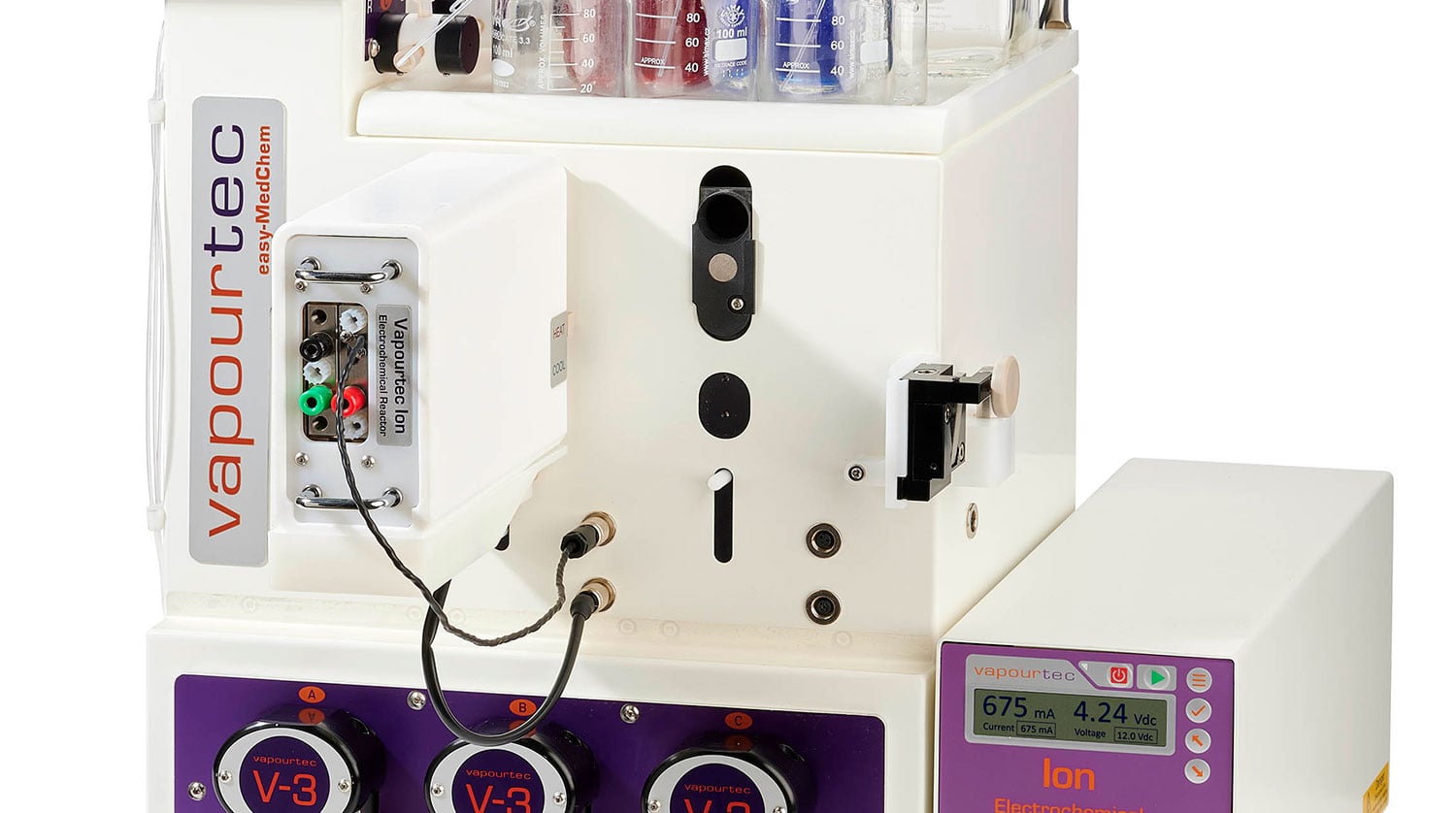

Ion electrochemical reactor

 Find out more
  • Options for integrated or standalone operation
  • Ability to heat and cool the reactor -10 °C to +100 °C
  • Operation at pressure up to 5 bar
  • 20 electrode materials available
  • Flexibility in electrode spacing, electrode area and reactor volume

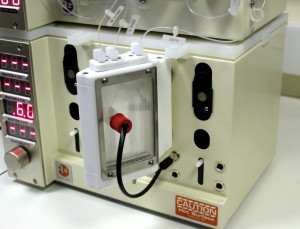

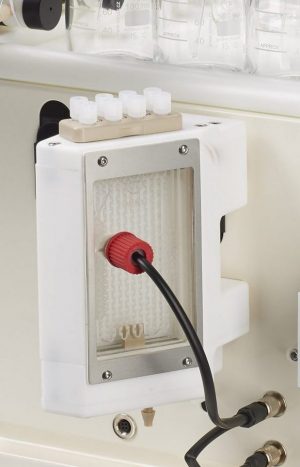

Micromixer chip reactor

 Find out more
  • For homogeneous reactions at small scale
  • Excellent visibility of reactants
  • -40°C to 150°C
  • Seven reactor configurations available
  • Use up to 8 reactors at one time
  • Borosilicate glass reactor chips

CSTR flow reactor

 Find out more Vapourtec-CSTR-flow-reactor
  • Enables cascades of CSTR’s
  • Cascade of up to 8 reactors on an R-Series system
  • Perfect for flow reactions involving solids
  • Compatible with E-Series and R-Series systems
  • 5 ml to 40 ml volume per CSTR
  • Pressurised reactions up to 5.0 bar
  • Built in burst disc and optional protective screen
  • Ability to heat and cool the reactor -10°C to +150°C
  • Stirrer speeds selectable from 100 rpm to 1200 rpm
  • Easy to assemble/disassemble, leak-free operation
  • Wetted materials Glass, PTFE, PFA, Kalrez
  • Option for photochemical CSTR 365 nm to 700 nm LED light sources

Photochemical CSTR flow reactor

 Find out more Vapourtec E-series with photochemical-CSTRs
  • Wavelengths of 365, 385, 400, 420 and 450 nm (other wavelengths up to 650 nm by request)
  • Each LED module has an input power of 70 W, delivering a radiant power up to 40 W
  • Dimmable in the range 10% to 100% of maximum power
  • Can be attached in seconds, without tools
  • One or two Photochemical CSTR’s can be powered from one standard Vapourtec UV-150 LED power supply
  • Compatible with E-series and R-series systems

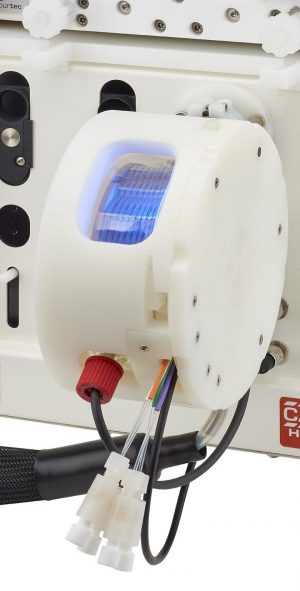

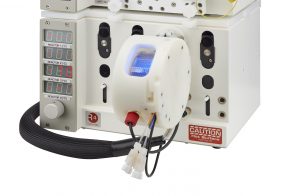

Cooled tube reactor

 Find out more
  • Good visibility of reactants
  • -70 °C to ambient
  • PFA reactors
  • Strong acid resistance (with PFA)
  • Pre-cooling of 3 reagents
  • Cooled mixers

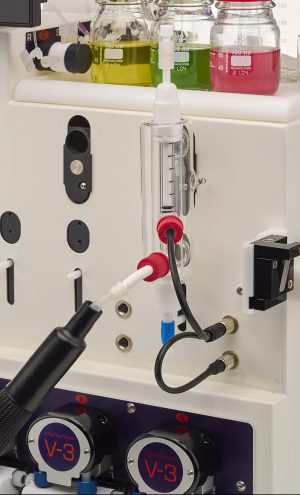

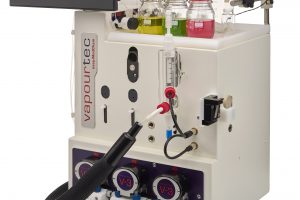

Cooled column reactor

 Find out more
  • For heterogeneous reactions
  • Excellent visibility of reactants
  • -40°C to ambient
  • Sizes from 3ml to 20ml
  • Glass and PTFE reactors
  • Strong acid resistance
  • Rapid temperature control

Large diameter tubular reactor for rapid mixing

 Find out more Vapourtec large diameter tubular reactor
  • 20ml internal volume
  • 3.2mm bore reactor
  • Full length static mixers
  • Strong acid resistant
  • Designed for bi-phasic liquid-liquid reactions
  • Fits into standard glass manifold
  • Temperature range ambient to 150°C

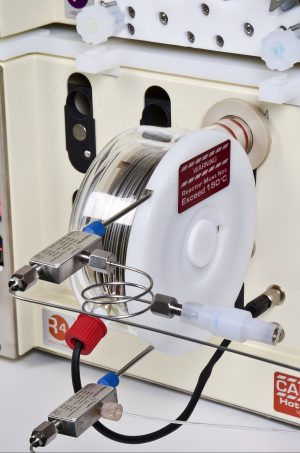

Gas-liquid reactor

 Find out more
  • For gas insertion reactions
  • Tube in tube configuration
  • Ideal for CO, H2 and O2
  • Ambient to 150°C
  • Up to 30 bar
  • Option for strong acid resistance

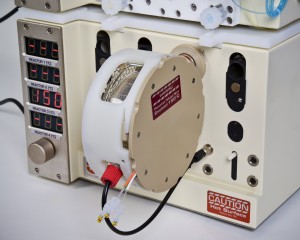

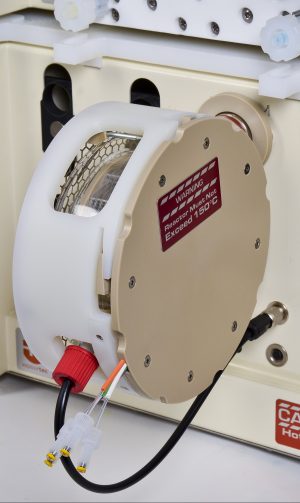

Heated mixing tube reactor

 Find out more
  • For temperature sensitive reagents
  • Good visibility of reactants
  • Ambient to 150°C
  • PFA reactors only
  • Strong acid resistance
  • Pre-heating of 3 reagents
  • Heated mixers

Progressive mixing reactor

 Find out more

Applications for this innovative reactor include:

  • Exothermic reactions
  • Anti-solvent crystallisations
  • Ionic liquid synthesis
  • Forced gradient polymer preparation

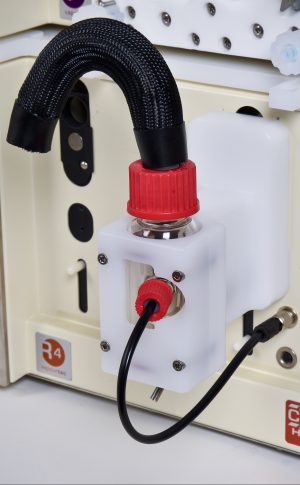

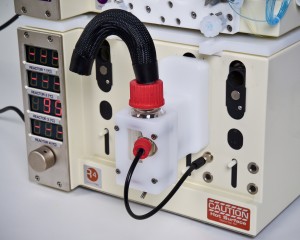

Heated BPR

 Find out more Heated BPR
  • For neat reactions
  • For products with melting points < 120°C
  • Allows BPR to be heated to 150°C
  • PEEK and Perfluoroelastomer wetted parts
