Best in class performance
Easy to learn and adaptable for many reactions or processes
The reassurance of a system chosen by all the major pharma companies, mentioned in 1,218 peer-reviewed publications
A proven design that has evolved over 18 years with over 700 systems in daily use around the world

Request a quote for an R-Series

Standard Configurations

View all configurations

RS-600 Multiple step reaction system

Multiple step telescoped reactions.
Automated reagent loading and product collection.
Vapourtec R-Series software
8 independent reactor positions
8 autosampler sources, 6 pump channels
Can be expanded up to 8 pumps
Optional in-line analytic tools

More on this configuration

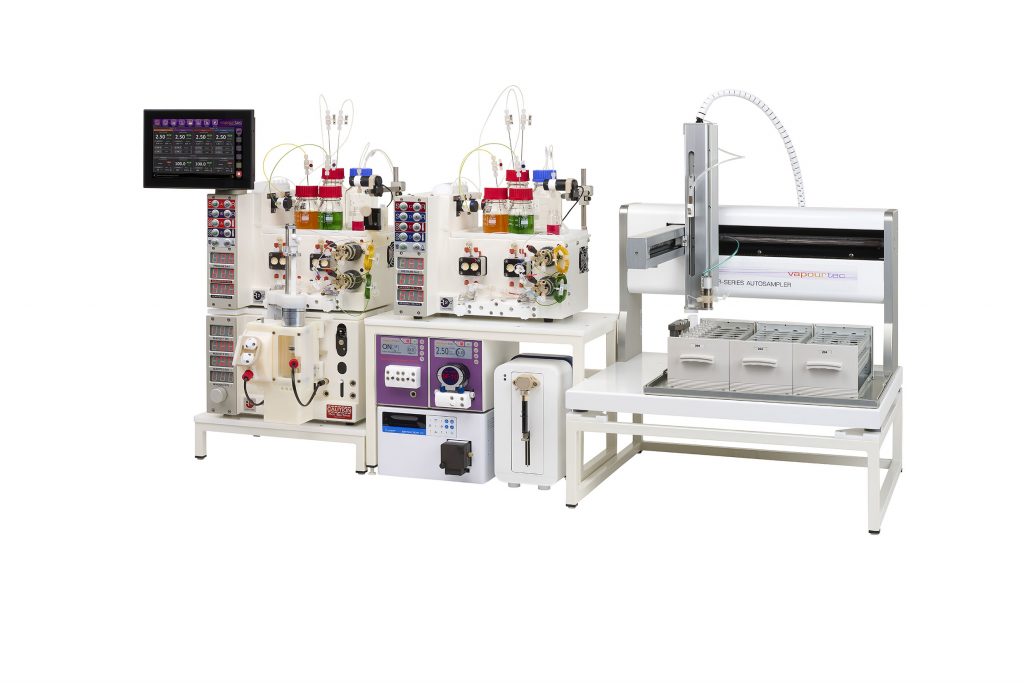

RS-500 Solid Phase Peptide Synthesis (SPPS)

Peptide-Explorer versatile automated peptide synthesizer

Optimised for continuous flow SPPS.
Automated reagent loading
Vapourtec R-Series software
Includes patented VBFR reactor technology
VBFR options for scales ranging from 0.05 mmol to 5 mmol
Real time data analysis for coupling and deprotection reactions
Continuous real-time volume analysis of peptide resin

More on this configuration

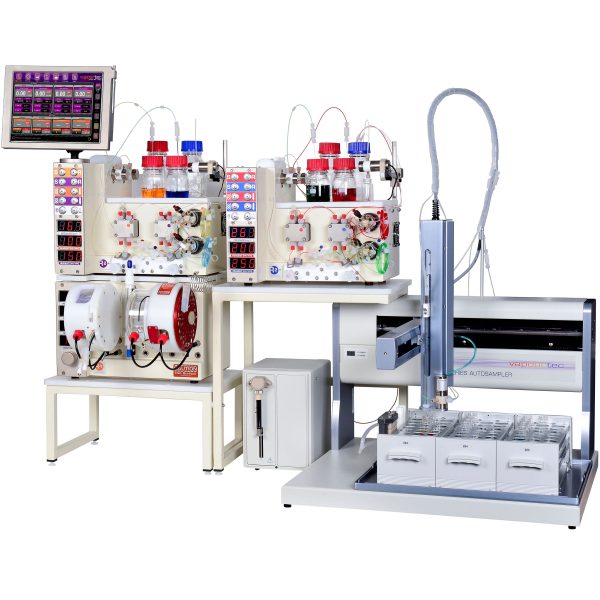

RS-400 – Automated Reagent Addition

More on this configuration

Microscale High-Throughput Synthesis in Continuous Flow

R-Series system with 4 pumps and autosampler
Ideal for library synthesis and catalyst screening
Four position reactor heater
Range of cooled and heated reactors
Autosampler/collector
Fully automated control

RS-300 – Multiple Reactions Automated

More on this configuration

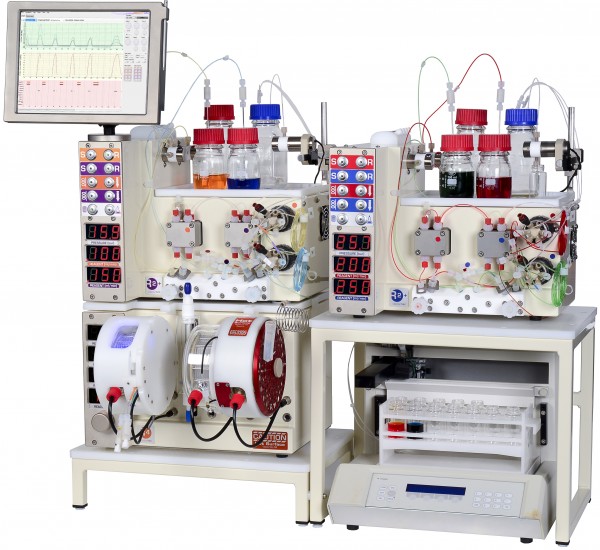

RS-300 multiple pump flow chemistry system

Automated R-Series system with 4 pumps
Ideal for med chem and process research
Four position reactor heater
Range of cooled and heated reactors
Product collector
Can be expanded as required
Automated control

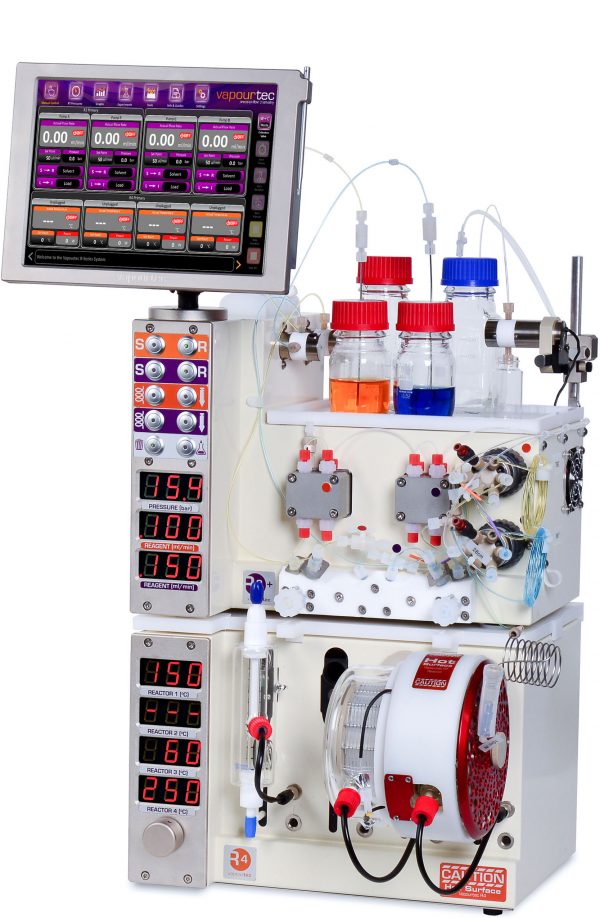

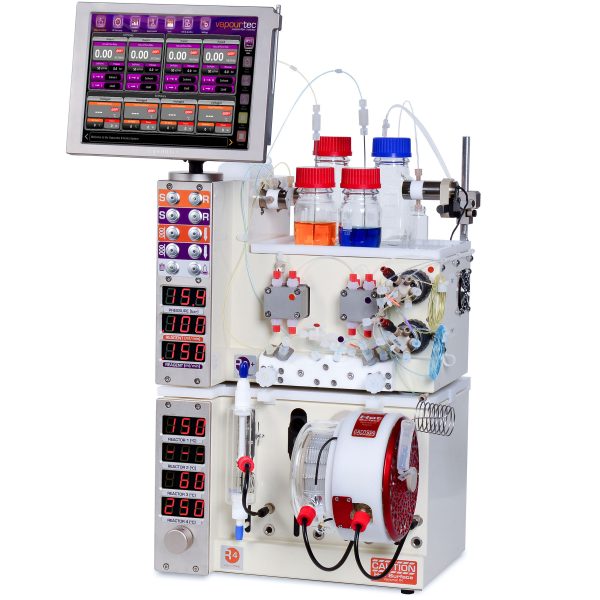

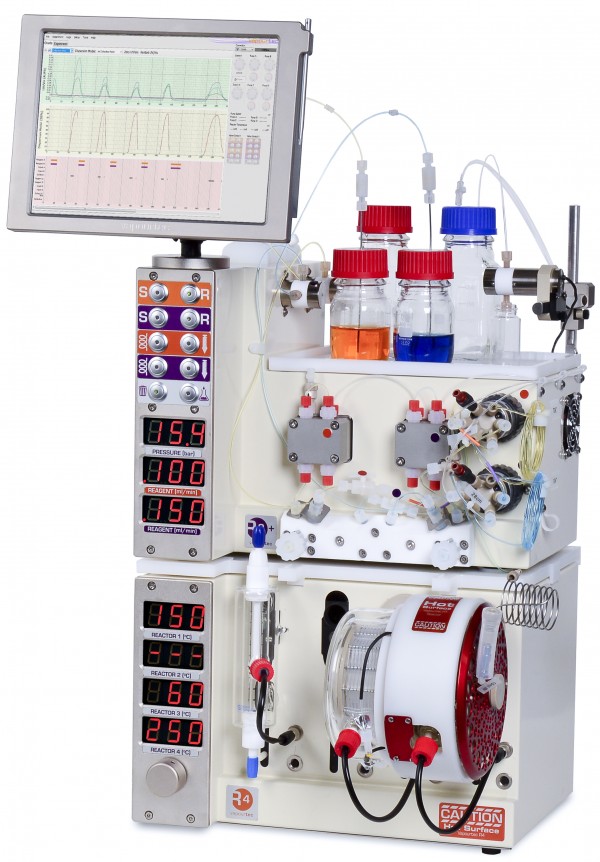

RS-200 – Automated Control

More on this configuration

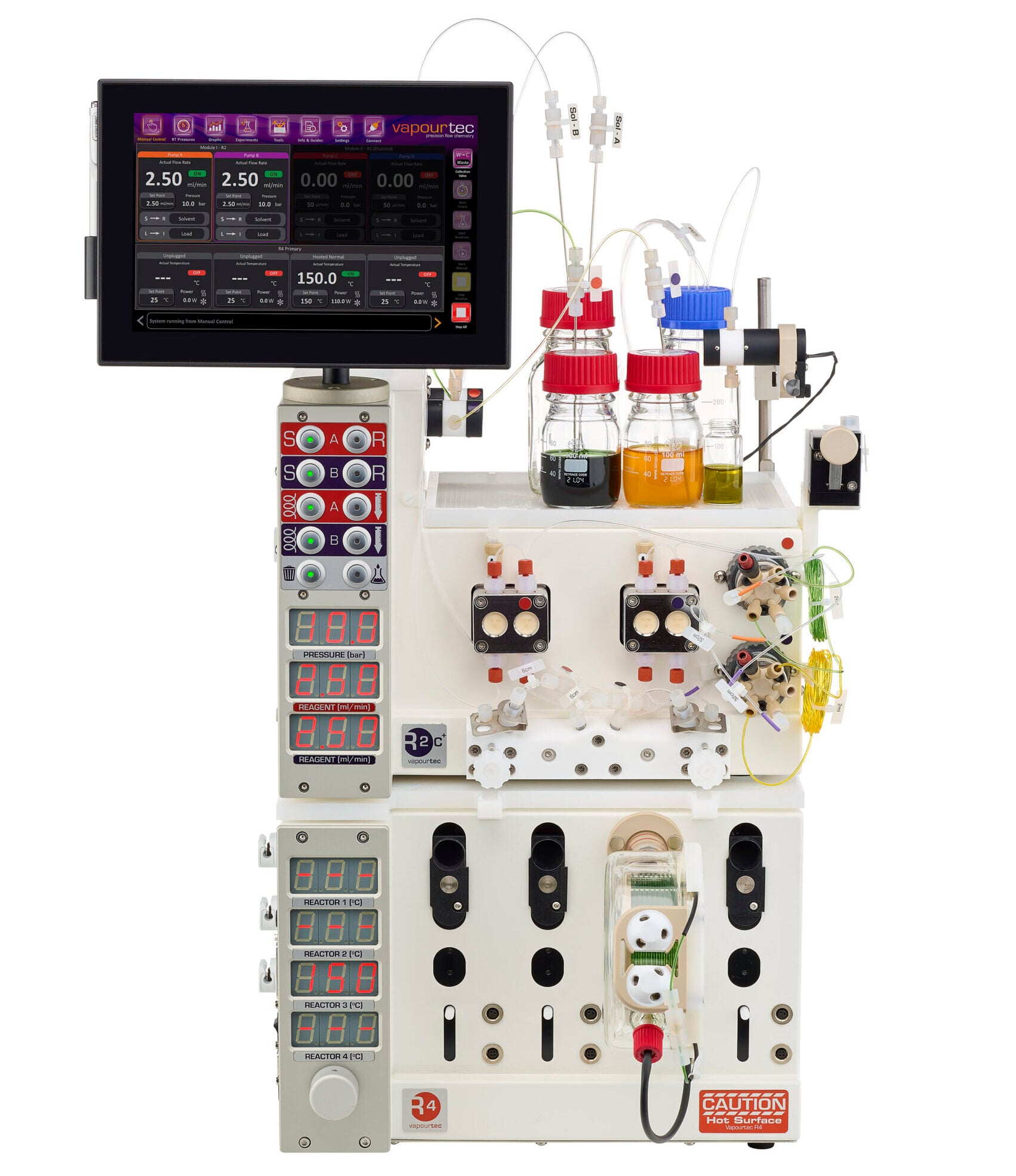

RS-200 multiple pump flow chemistry system

R-Series system with automated control
Ideal for med chem and process research
Two independent pumps
Four position reactor heater
Range of reactors
Can be expanded as required
Automated control

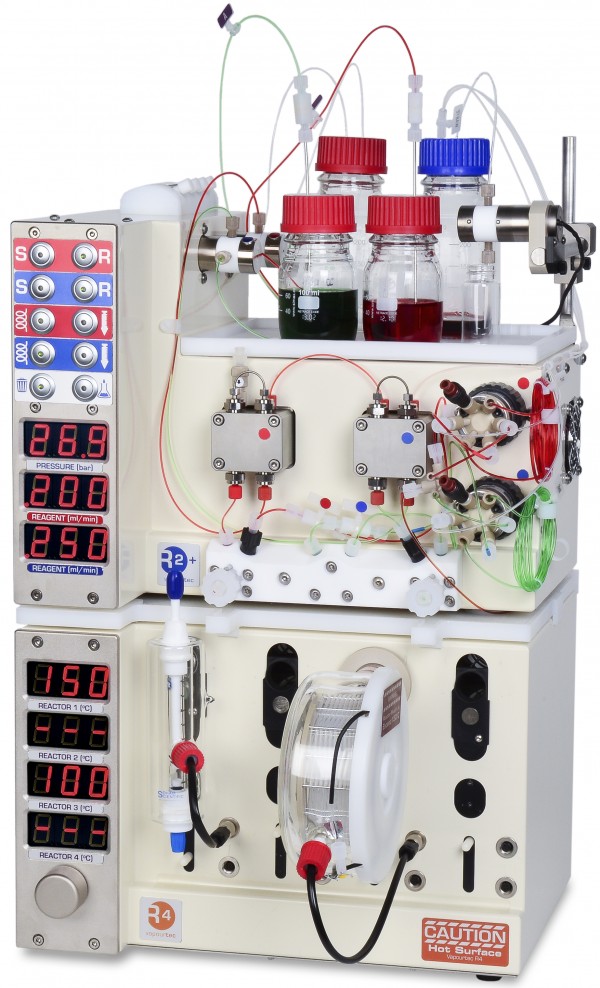

RS-100 – Manual Control

More on this configuration

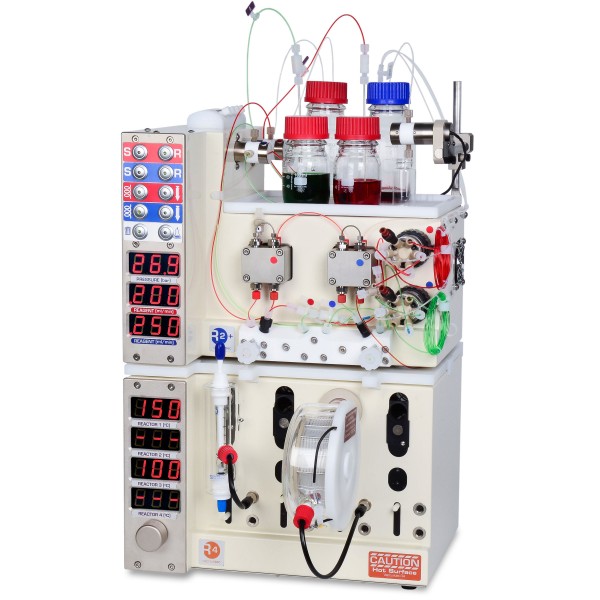

Entry level R-Series system
Ideal for academic research
Completely modular
Can be expanded as research requires
Two independent pumps
Four position reactor heater
Manual control

R-Series pump modules can be operated as standalone or purchased as an upgrade option to an existing system. Several configurations of module are available covering a diverse range of chemical pumping options. The R-series pump modules come as standard with inert gas delivery kits and the ability to pump organometallics. R-series pump modules have built in pump monitoring.

Visit page

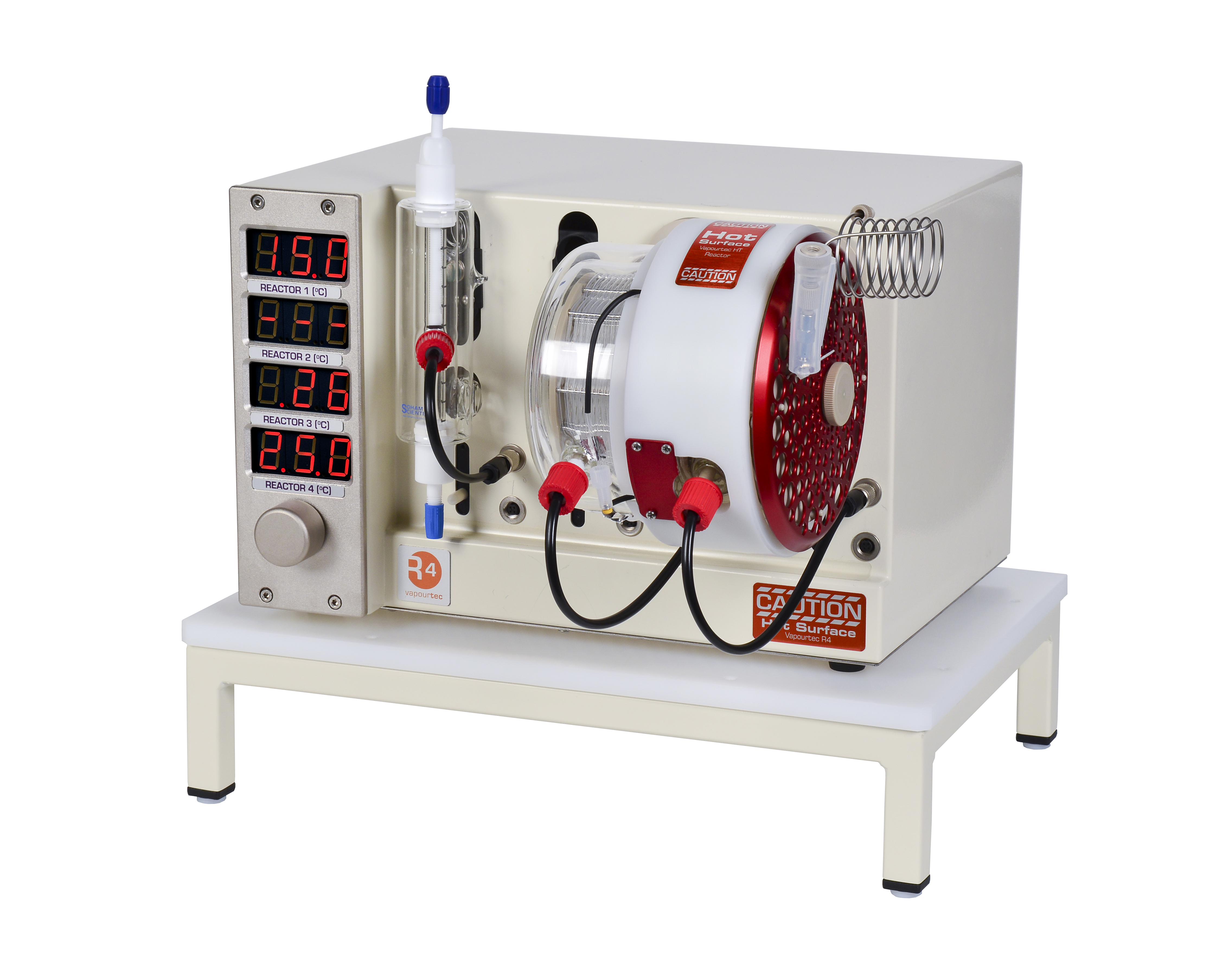

Reactor Heater / Cooler

The Vapourtec R4 reactor heater module is a 4-channel independently controlled reactor heater. Depending on reactor selection its capable of cooling and heating from -70°C to +250°C with a 1°C setpoint resolution. The R4 reactor heater module is capable of controlling an exothermic reaction and providing reactor temperature and power data.

Visit page
