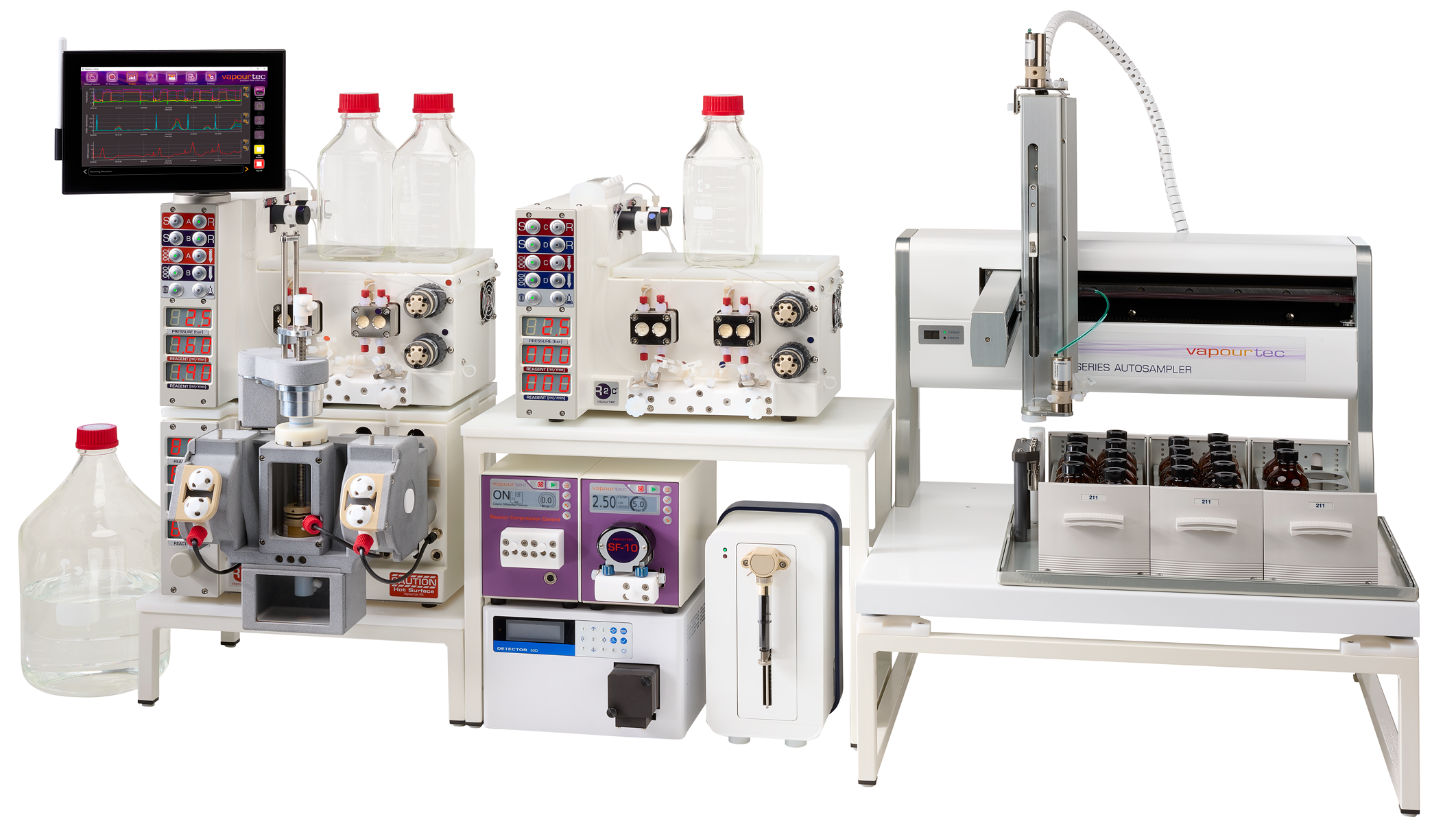

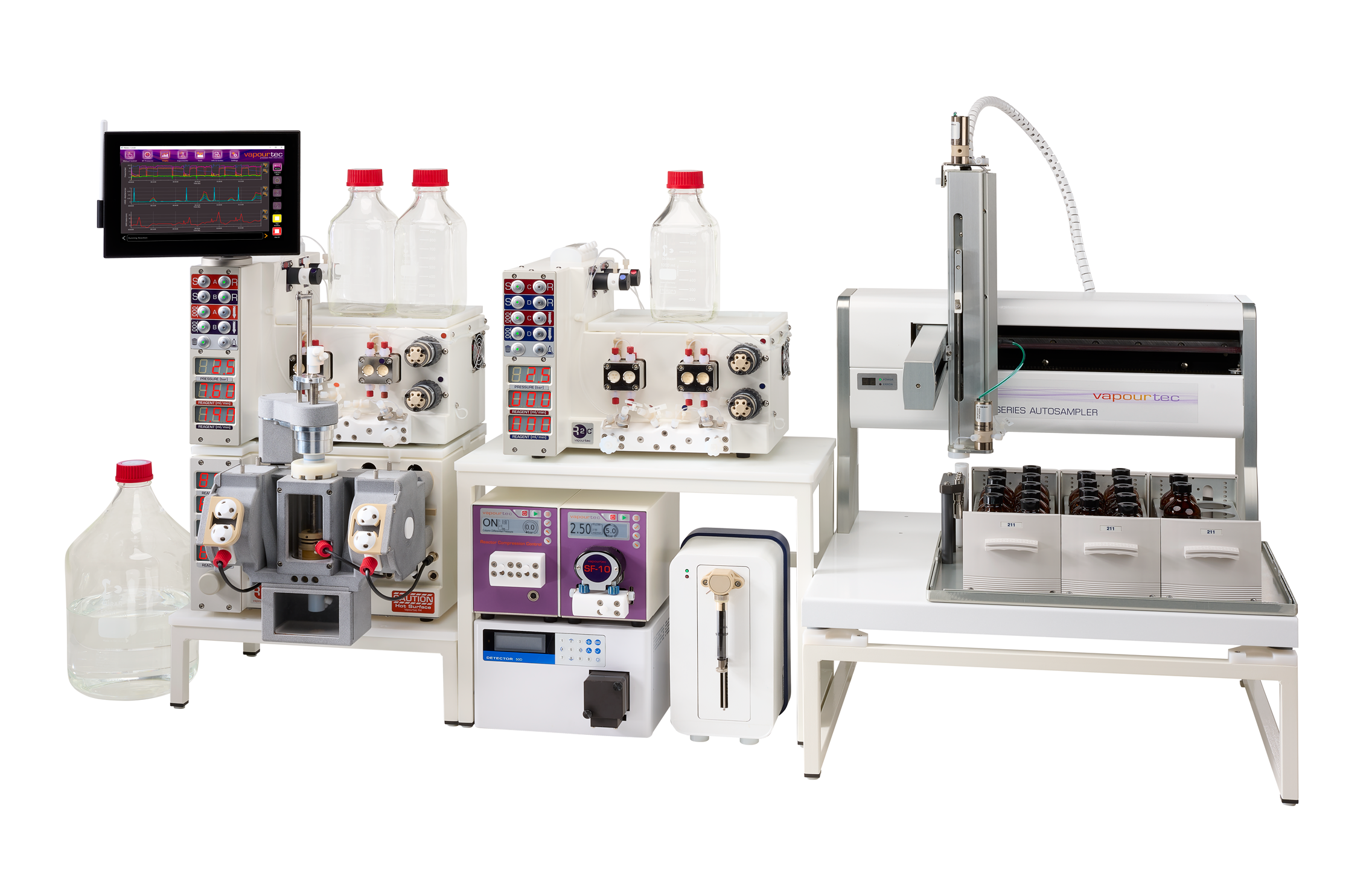

Configuration Overview

The Peptide-Scaleup is designed for the peptide chemist aiming to scaleup their peptides where synthesis time is critical. The Peptide-Scaleup is an advanced alternative to traditional room temperature batch scaleup peptide synthesizers. Typically a 30-mer peptide can be synthesized at 4 mmol scale in just 16 hours.

  • Synthesis scale 0.5 mmol to 5.0 mmol
  • Highest quality crude peptides at large scale, minimises demands on purification
  • Heated reactors (VBFR) ensures fast cycle times even at largest scale
  • State of the art peptide synthesis software including sequence generator with automated addition of side chain(s)
  • Uses Vapourtec’s patented reactor technology (VBFR) for continuous flow single pass SPPS
  • Fmoc solid phase peptide chemistry with DIC and oxyma activation
  • Minimises solvent and reagent usage compared with competing products
  • Continuous in-line analytics including resin solvation data and UV absorption data
  • A synthesis optimised on the Peptide-Explorer can be transferred to the Peptide-Pilot without further development

For more information about SPPS follow this link

For more information about VBFR technology follow this link

For more information about this system please contact us here
