What is your flow chemistry system really doing ?
Flow chemistry potentially offers the chemist a level of reproducibility that is hard to match with manual batch chemistry and which results in very reliable scale-up.
However, this is only possible if the key variables of the reaction are accurately known at all times, and these are
- reaction temperature
- reagent concentration and relative proportions
- reactor residence time
Both reagent proportions and reactor residence time can only be accurately known in a flow chemistry situation if all reagent flow rates are known.
Not accurately knowing true flow rates can mean that:
- reactions that should have worked may not, with no apparent explanation
- reactions that worked once may fail when reproduced
- reactions that did work will be documented with the wrong flow rates
- scale-up efforts will fail.
Some chemists’ early flow chemistry experiences with unsophisticated equipment may well have been unsuccessful for exactly this reason.
The pumps most widely used in flow chemistry equipment use the same technology as those used in HPLC systems. This is because they can deliver high pressure, they are reliable, and can accurately operate over a wide range of flow rates, delivering a smooth pulse free output. However, there are circumstances that can affect this accuracy which, if not detected, will result in actual flow rates that do not match those requested.
These include
- transient or static air bubbles caused by excessive dissolved gas in the reagents or insufficient wetting of the pump working parts
- transitions between reagents that are not fully miscible
- obstructions caused by particulates in the reagents
There are of course things that can be done to try and avoid these issues
- dissolved gas should be minimised
- pumps should be well primed before starting reactions
- the system solvent used in a particular channel should always be fully miscible with the reagents used in that channel
- reagents which likely to contain particulates should be filtered
But this alone will never guarantee that the problem is eliminated.
Sometimes a pump exhibiting one of these issues may stop dispensing altogether. At high flow rates, this is relatively easy to detect and even unsophisticated equipment should be able to spot this.
But just as serious and far less easy to spot are the cases where flow from the pump is present but not correct, or where the problem occurs at lower flow rates.
Clearly, without some means of spotting this, the results from a flow chemistry system could never be trusted.

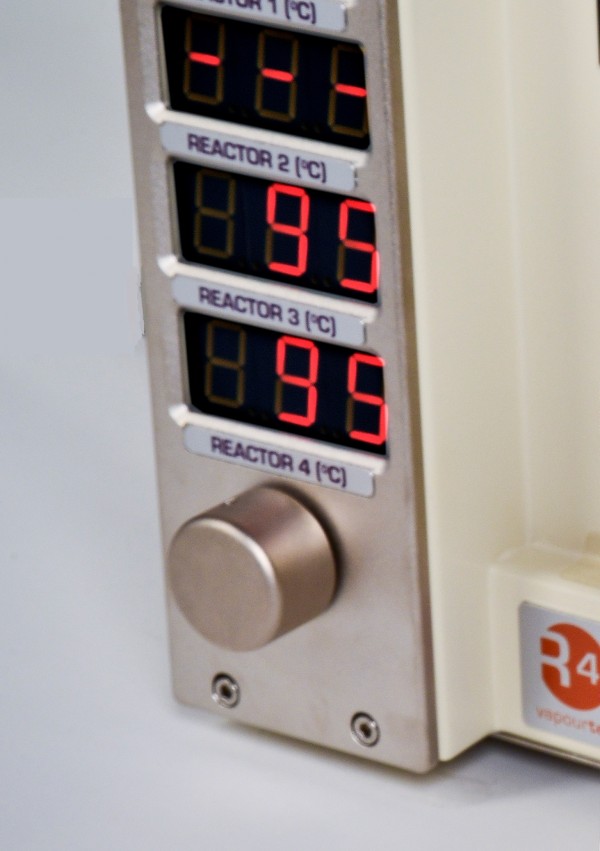

Problem Solved : The Vapourtec Pump Monitoring System
Because this issue is so important to successful flow chemistry, Vapourtec developed a pump monitoring system that is built into all R Series pumping systems.This offers the following facilities
- it detects any failure to pump correctly across the whole range of flow rates
- it tells the user which pump is not pumping correctly.
The first of these is extremely important. Some less sophisticated monitoring systems might be able to tell if the pump is not pumping at all, or may be able to detect incorrect behaviour at high flow rates (1ml /min and above). But the Vapourtec system will reliably detect all incorrect pump behaviour at the very lowest flow rates (down to less than 50 microlitres/min).
The second of these is also pretty crucial. If a monitoring system warns that “one of the pumps is not functioning correctly” but not which one, that is quite inconvenient. The user then has to re-prime every pump (which wastes time and reagents) to be sure the problem is rectified.
The Vapourtec system can now be expanded to 4 separate pumped channels (click here for more details) and every one of these channels is separately monitored.
In Summary
To chemists who are used to seeing a reaction in a flask, flow chemistry can at first seem a bit like a “black box”. What goes on inside has to be taken on trust. Without proper flow feedback, that trust would be misplaced.
There is still a perception among some chemists that a flow chemistry system can easily be assembled with separate pumps and reactors. What has become clear in recent years is that without some form of pump performance feedback, the true flow rate in a reaction can never be known for certain at all times.
No chemist can afford to find that work has been wasted.
A lot of R&D effort has been focused on addressing these issues so that you can just get on with the chemistry.
With the Vapourtec R Series, the flow is what it should be, or else the system announces otherwise.
It’s just one more thing a busy chemist won’t need to worry about.
If you have any further questions, contact Vapourtec for further information.
