Date: 25 September 2025
Traditional batch peptide synthesis has served researchers for decades but comes with inherent limitations: unpredictable reactions, challenging scale-up, inefficient reagent use, and lack of real-time monitoring. Fast-Flow SPPS ( FF-SPPS) overcomes these challenges, providing a precise, efficient, and user-friendly solution to streamline any peptide workflow.
Eliminate Randomness – Improve Crude Purity

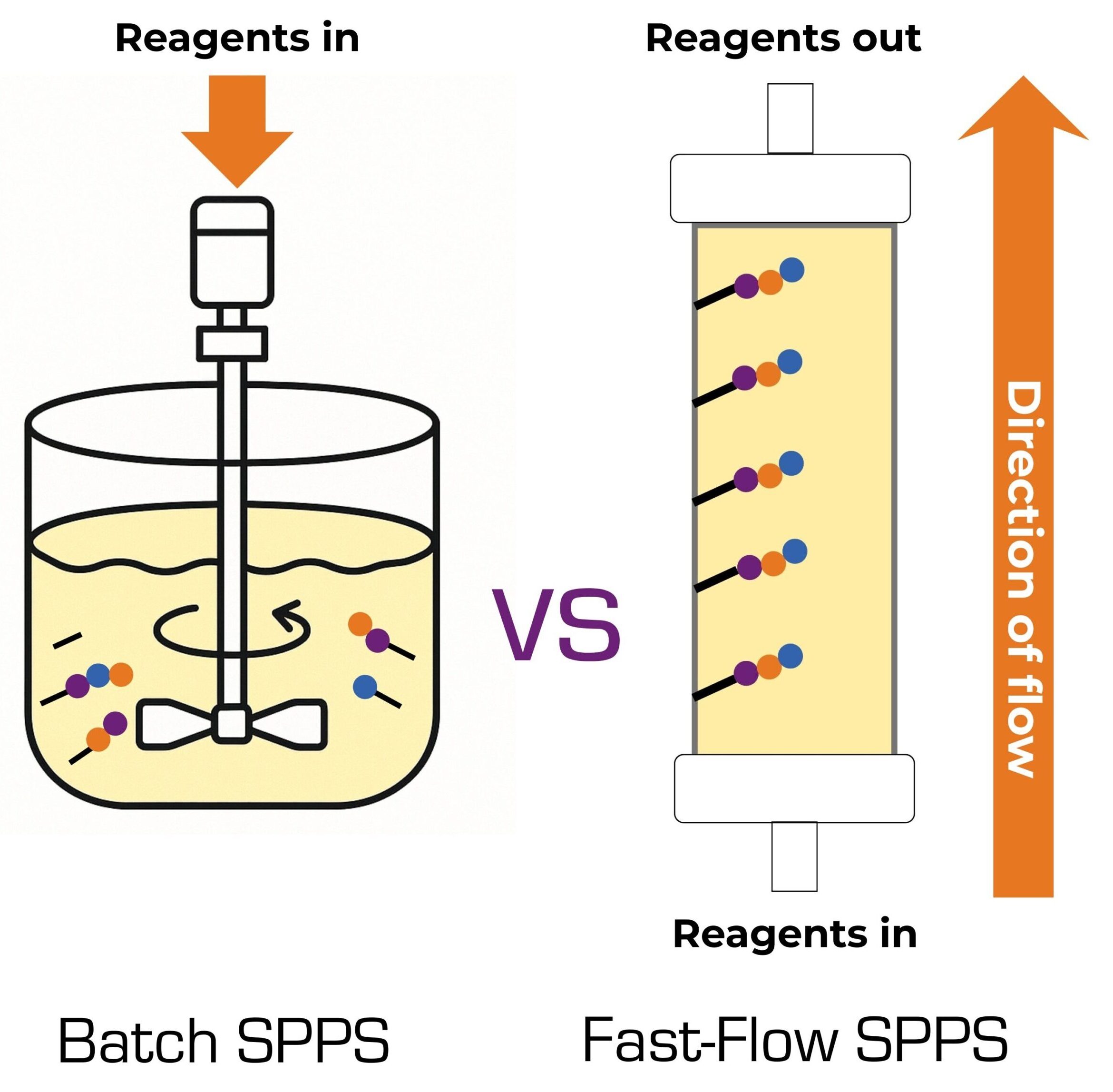

A key distinction between FF-SPPS and batch synthesis is the arrangement of the solid support. In batch, resin is stirred in a vessel and reagents are added, leading to random coupling and a normal distribution of deletion impurities. In FF-SPPS, the resin is packed in Vapourtec’s Variable Bed Flow Reactor (VBFR), which automatically adjusts its volume as coupling and deprotection occur. This static packed bed prevents bead movement, eliminates back-mixing, continuously removes by-products, and maintains minimal reactor volume. By constraining both the resin and reagent flow, the system achieves high reaction efficiency and favours the target peptide, even under substoichiometric conditions.
Figure 1: Theoretical peptide distribution in batch vs flow with 0.5 equivalents amino acidsHeated Reactions – Access Difficult Peptides
Heating in FF-SPPS prevents β sheet driven aggregation and accelerates reaction kinetics, which is especially helpful for sterically hindered couplings. Flow chemistry allows amino acids to be pre-heated and pre-activated before entering the VBFR, enabling faster and more efficient cycles. Consistent, uniform heating is critical for reproducibility, as hot spots or temperature spikes can cause racemization and ligand loss, particularly with chlorotrityl resins.
Effortless Scale-Up
Traditional batch peptide synthesis can take weeks to optimize and scale for clinical production. Vapourtec’s PS 30™ pilot-scale synthesizer accelerates development by using large-scale reactors with the same heating and mixing characteristics as lab-scale platforms. Syntheses optimized at 50 µmol can be directly scaled to 30 mmol without further adjustments. For example, GLP- 1 was synthesized at 15 mmol in under a day, achieving identical crude purities to the small-scale reaction, demonstrating both speed and reproducibility.
Figure 2: HLPC traces for the product of the GLP-1 synthesis at 50 µmol vs 15 mmol scaleReal-Time Monitoring
FF-SPPS offers chemical advantages along with unprecedented real-time in-line data. The VBFR allows reactor volume changes to be tracked, helping detect aggregation events, while quantitative in-line monitoring of Fmoc deprotection provides immediate insight into reaction progress. Together, these data enable rapid identification and optimization of difficult couplings at small scale before scaling up.
Lower Reagent and Solvent Usage
The VBFR technology together with the uniform heating allow for effective couplings with as low as 1.2 equivalents of amino acids. This translates into reduced costs, especially when using unnatural amino acids. FF-SPPS also benefits from an inherent advantage of flow chemistry, reducing solvent usage compared to batch techniques with only 70 ml per mmol per cycle.
How Does it Work?
- Variable Bed Flow Reactor (VBFR) Setup
Resin is packed into Vapourtec’s VBFR, where it remains static. The reactor automatically adjusts its volume as the resin swells during amino acid coupling and shrinks during Fmoc deprotection, maintaining optimal reactor volume throughout the synthesis. - Controlled Sequential Flow
All reagents and solvents flow sequentially through the VBFR. Flow rate, concentration, temperature, and residence time are precisely controlled to maximize efficiency. - Uniform Heating & Kinetics Control
Pre-heating and uniform temperature control enhance reaction kinetics, reduce aggregation, and prevent misfolding, even for sterically hindered residues. - Real-Time Monitoring & Optimization
In-line sensors track Fmoc deprotection and other key steps. Any irregularities in coupling or deprotection can be detected immediately, allowing rapid adjustment and optimization before scaling up.
Key Advantages Over Batch SPPS
| Feature | Batch SPPS | Fast-Flow SPPS (Vapourtec) | Benefits |
|---|---|---|---|
| Resin arrangement | Stirred in vessel; beads move freely | Packed static in a reactor | Controlled interaction; eliminates back-mixing. |
| Reaction kinetics | Limited by manual addition and diffusion | Continuous reagent flow; pre-heated & pre-activated | Faster cycle times, more efficient coupling-single coupling and single deprotection |
| Reagent efficiency | Often requires excess reagents- more waste | Can work at substoichiometric conditions | Reduced waste, cost-effective |
| Scale-up | Requires re-optimization | Direct scale-up from µmol to mmol scale | Rapid scale-up with identical reaction conditions |
| Purity & yield | Impurities accumulate; normal deletion profile | High efficiency: target peptide favoured | Higher crude purity, fewer deletions |
| Monitoring | Often after fact; batch finished | In-line sensors track Fmoc deprotection & resin volume | Real-time data; early detection of aggregation events |
| Temperature control | Controlled at room temperature or hot spots | Uniform heating; better control, improved kinetics | Faster peptide synthesis, even for difficult sequences |
Practical Benefits in the Lab
- Faster turnaround from design to product
- Fewer failed syntheses due to tricky sequences
- Reduced cost of reagents, especially for non-standard or expensive amino acids
- More sustainable workflow (less waste, less solvent)
- Higher confidence in scale up for research, development, or production
Final Thoughts
Flow SPPS represents a significant step forward for peptide synthesis. It offers better control, improved purity, and greater efficiency than traditional batch methods. For labs pushing the limits, whether in complexity, scale, or speed, making the shift to flow can pay off in reliability and quality. Whether you’re developing novel therapeutics or streamlining research workflows, the switch to flow can deliver faster results with higher purity.
