Continuous flow processing of bismuth-photocatalyzed atom transfer radical addition reactions using an oscillatory flow reactor
- Pauline Bianchia
- Jason D. Williamsa,b
- C. Oliver Kappea,b
- aInstitute of Chemistry, University of Graz, NAWI Graz, Heinrichstrasse 28, 8010 Graz, Austria
- bCenter for Continuous Flow Synthesis and Processing (CC FLOW), Research Center Pharmaceutical Engineering (RCPE), Inffeldgasse 13, 8010 Graz, Austria

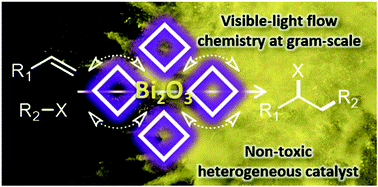

Read the publication that featured this abstractMetal oxides represent an abundant and non-toxic class of photocatalysts for organic transformations. However, their use in larger scale processes is complicated by incompatibilities with continuous flow processing – a proven scale-up route for photochemistry. We detail the development of an efficient atom transfer radical addition protocol using a sustainable solvent system (acetone : PEG 400) and a low loading (2 mol%) of Bi2O3, which can be handled in an oscillatory flow reactor. Optimization of the reaction and oscillatory parameters led to high throughput (36 g in 4 h, 89% yield, 599 g L−1 h−1), with a process mass intensity (PMI) of just 8.5. The process also facilitates high recyclability (3 cycles with no loss of yield), and was demonstrated to be applicable to a range of other substrates on multigram scale, in moderate to excellent yields.
